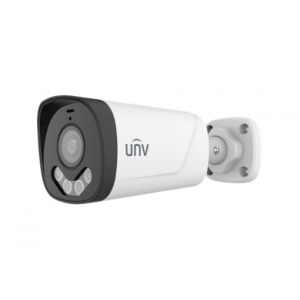

Unv telec. bullet 4n1 5mpx 2.8mm dl colourhunter built-in mic
Unv telec. bullet 4n1 5mpx 2.8mm dl colourhunter built-in mic
Foto e descrizione sono da ritenersi a scopo illustrativo
  • Produttore: UNIVIEW
  • EAN: 6937096326025
  • Cod. Infotecnica: UACB145AF28LMDL
2 unità disponibili
€ 43,36
UAC-B145-AF28LM-DL

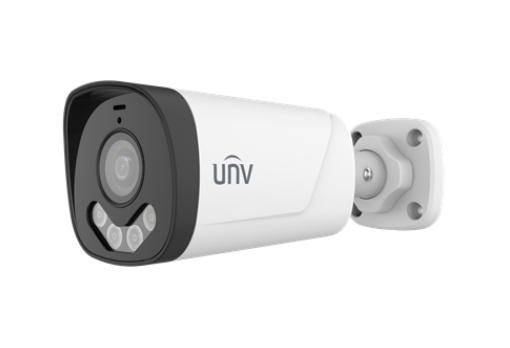

5MP ColorHunter Fixed Dual-light Bullet Analog Camera
• High quality imaging with 5MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Smart Dual Light (only TVI)
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
Visualizza Scheda Tecnica
UAC-B145-AF28LM-DL
Camera
Max Resolution5 MP
Sensor Size1/2.7" CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (Illuminator ON)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)110.0°90.0°
Angle of View (V)57.0°48.0°
Angle of View (D)130.0°109.1°
Illuminator
Illuminator NumberTwo IR illuminators; Two white-light illuminators
Illumination DistanceIR: 40m (131.23 ft)
White light: 40m (131.23ft)
Lifetime≥ 60000 hours
Video
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
Light ModeDual light (default) , Infrared, White light
FlipSupports 180°horizontal flip, 180°vertical flip
Audio
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity≤ 95% RH (non-condensing)
Surge Protection4kV for power&4kV for video output interfaces
General
PowerDC 12 V ± 25%
Power ConsumptionMAX 3.5W
MountCorner Mount&Pole Mount
Dimensions198mm*74mm*74mm (L*W*H)
MaterialMetal + Plastic
Weight227g (0.50lb)227g(0.50lb)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
